360° Double-Sided LED Display | HD Circular Screen for Gaming & Business
Double-sided LED display
360-degree circular screen
High-resolution visuals
Long-lasting LED lights

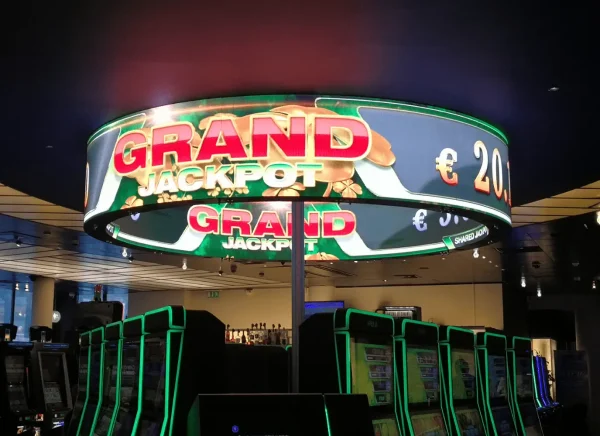

360° Double-Sided LED Display
Radiant’s revolutionary 360° double-sided LED display redefines circular visual solutions with its 3840Hz ultra-smooth refresh rate and 16-bit grayscale precision, delivering cinematic 4K-quality imagery (800-1200nits) that maintains clarity across 160° horizontal/140° vertical viewing angles.
Military-grade IP43-rated aluminum alloy cabinet
Engineered for high-traffic environments like eSports arenas and luxury retail hubs, withstanding -10℃~50℃ temperature extremes while housing energy-efficient modules (130W/m² avg consumption) with 100,000-hour LED lifespan – equivalent to 11+ years of 24/7 operation.
Technical Specifications
-
3840Hz Refresh Rate16-bit grayscale precision
-
160°/140° Viewing AnglesHorizontal/Vertical coverage
-
100,000-hour Lifespan11+ years continuous operation
Configuration Features
IP43
Military-grade Rating
240-320mm
Panel Interlocking
70kg/m²
Structural Density
1.8-8m
Viewing Configurations
Modular System Advantages
Auto-voltage adaptation (100-240V) with commercial installation certification
Magnetic panel system supports infinite diameter configurations
Front-service accessibility with tool-free maintenance
Energy-efficient modules at 130W/m² average consumption
Details Specification
| Item | RDT-GS001 | Pixel Pitch | 1.86mm,2.0mm,2.5mm,3.0mm | ||
| Module size | 240mm x 160mm | 320mm x 160mm | Cabinet size | Customized based on module size | |
| Cabinet Weight | 70 kg/m²(inter and outer display) | Physical Density | 289050 dots/m², 250000 dots/m², 160000 dots/m²,111111 dots/m² | ||
| Brightness | 800-1200nits | Refresh Rate | 1920-3840 Hz | ||
| Driving Mode | Constant Current | Gray Level | 16 bit | ||
| Working Voltage | 100-240V AC, 50&60Hz | Protection Level | IP43 | ||
| Maximum Power Consumption | 460W /m² | Average Power Consumption | 130W /m² | ||
| View Angle | 160ºH/140ºV | Viewing Distance | >1.8m,2m,2.5m,3m | ||
| Working Temperature | -10℃~ +50 ℃ | Working Humidity | 10 – 95 % RH | ||
| LED Life(Normal Tep) | 100,000 Hours | Software System | Novastar | ||
| Application | Indoor | Installation Type | Fixed installation | ||
| Maintenance Method | Front (Magnetic module) | Warranty | >2 years | ||
