FPP 1.56mm Ultra-Slim Video Panel | Conference Room LED Screen Solution
New super thin design
Full front maintenance access
Optional dual receiving card and power supply
Wireless aviation plug for neat appearance
4:3 ratio cabinet design for easy splicing

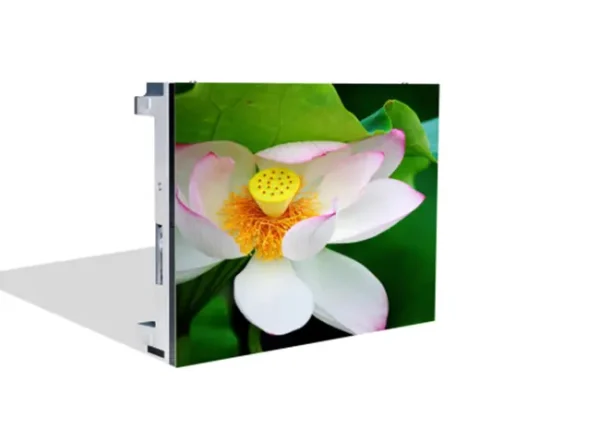

Radiant FPP1.56 LED Video Wall Solution
Ultra-fine 1.56mm pixel pitch delivers 410,913 dots/m² density for razor-sharp imagery in corporate boardrooms and mission-critical command centers.
Featuring 160°(H/V) viewing angle and 600nits brightness, this display ensures consistent color vibrancy and deep 16-bit grayscale contrast from any vantage point.
600nits brightness
Innovative Design
-
Front Magnetic MaintenanceTool-free access for rapid servicing
-
Ultra-Slim Profile65mm depth cabinets with wireless aviation plugs
-
Dual Power SecurityRedundant power supply system
Robust Construction
Industrial Aluminum
Protection Rating
6kg/600×337.5mm
Cabinet Dimensions
24/7 Operation
Operating Range
100K Hours
Humidity Tolerance
Key Performance Highlights
✔️ 3840Hz Refresh Rate with 1/54 Scan Mode
✔️ IP31 Environmental Protection
✔️ 540W/m² (Max) / 180W/m² (Avg) Power Efficiency
✔️ -10℃~+50℃ Operating Range
Details Specification
| Pixel Pitch | 1.56mm | LED arrangement | Nationstar SMD1010 |
| Module size | 300mm x 168.75mm | Module Resolution | 192 x 108 pixels |
| Cabinet Size | 600mm x 337.5mm x 65mm | Cabinet Resolution | 384 x 216 pixels |
| Cabinet Weight | 6 kg | Cabinet Material | Die-casting Aluminum |
| Physical Density | 410913 dots/m² | Brightness | 600 nits |
| Driving Mode | 1/54 scan | Refresh Rate | 3840 Hz |
| Gray Level | 16 bit | Software System | Novastar |
| Working Voltage | AC100~240V(50-63Hz) | Protection Level | IP31 |
| Maximum Power Consumption | 540W /m² | Average Power Consumption | 180W /m² |
| View Angle | 160ºH/160ºV | Viewing Distance | > 1 m |
| Working Temperature | ﹣10℃－﹢50℃ | Working Humidity | 10%－90%RH |
| LED Life(Normal Tep) | 100,000 Hours | Control Mode | Synchronous control |
| Application | Indoor | Installation Type | Fixed |
| Maintenance Method | Front (Magnetic module) | Certificate | CE/ROHS/FCC |
