P3 Flexible LED Column Video Wall | 3.0mm Curvable Screen
High-Resolution P3 Clarity
Flexible, Curvable Panels
Slim, Lightweight Design
Seamless Visuals
Radiant P3 Flexible LED Column Video Wall

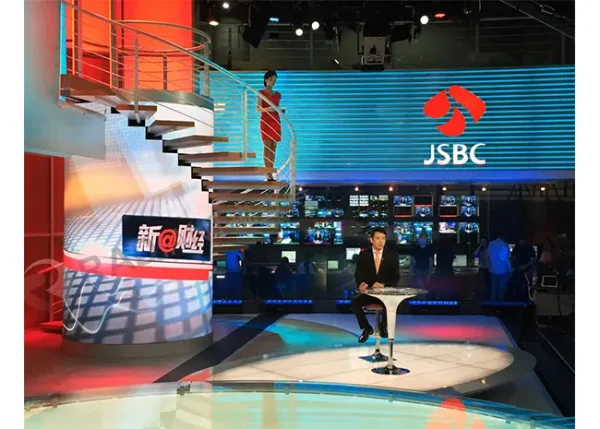

Radiant’s P3 Flexible LED Column Video Wall redefines visual excellence with its 3.0mm pixel pitch resolution, delivering 111,111 pixels/m² density for crystal-clear imagery across curved surfaces. Engineered with ultra-thin magnetic modules (240x160mm, 0.32kg each), this bendable display system enables seamless 360° architectural integration, perfect for transforming TV station studios into dynamic broadcast environments and enhancing architectural designs with wrap-around digital canvases.
Technical Specifications
-
Brightness1200nits
-
Viewing Angles160°H/140°V
-
Power Consumption130W/m²
-
Operating Temp-10℃ to +50℃
Key Innovations
1920-3840Hz
Refresh Rate
16-bit
Color Depth
3mm
Bezel-less Design
HD 80×52
Module Resolution
Deployment Features
IP43-rated protection ensures durability in diverse environments
100-240V AC compatibility for global deployment flexibility
100,000+ hours LED lifespan for permanent installations
Magnetic modules enable rapid curved configurations
Details Specification
| Item | RDT-TS3.0 | Pixel Pitch | 3.0mm |
| Module size | 240mm x 160mm | Module Resolution | 80 x 52 pixels |
| Module Weight | 0.32 kg | Physical Density | 111,111 dots/m² |
| Brightness | 1200nits | Refresh Rate | 1920-3840 Hz |
| Driving Mode | Constant Current 1/32 | Gray Level | 16 bit |
| Working Voltage | 100-240V AC, 50&60Hz | Protection Level | IP43 |
| Maximum Power Consumption | 460W /m² | Average Power Consumption | 130W /m² |
| View Angle | 160ºH/140ºV | Viewing Distance | >3 m |
| Working Temperature | -10℃~ +50 ℃ | Working Humidity | 10 – 95 % RH |
| LED Life(Normal Tep) | 100,000 Hours | Viewing Angle | 140°/140° |
| Application | Indoor | Installation Type | Fixed installation |
| Maintenance Method | Front (Magnetic module) | Software System | Novastar |
